Description

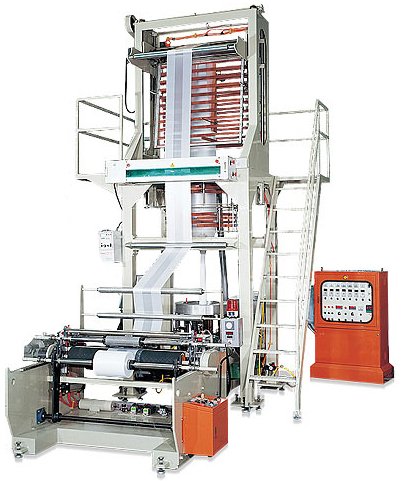

High-speed single-layer extruder for blowing HDPE tubular film.
| Model | KMH-45S |
| Processed material | HDPE |
| Thickness of produced film, mm | 0.008-0.12 |
| Film width, mm | 250-700 |
| Output, kg/h | 75 |
| Extruder | |
| Auger diameter, mm | Ø 55 |
| Auger length to diameter ratio | 32:1 |
| Heating capacity, kW | 11.5 |
| Automated thermal control | 5 зон |
| Fan for cylinder cooling, hp | 1/16 x3 |
| Drive motor, hp | AC, 25 hp + inverter |
| Extrusion head | |
| Head diameter, mm | Ø 70/90 |
| Annular gap for air supply, mm | Ø 150 |
| Heating capacity, kW | 6 |
| Automated thermal control | 2 зоны |
| Cooling air blower, hp | 5 |
|
Drawing device |
|
| Drawing roller, mm | 800 |
| Operating width, mm | 700 |
| Drawing motor, hp | AC, 1 |
| Drawing speed, m/min | 150 |
| Lifting motor, hp | AC, 1/2 |
| Winding device | |
| Roller width, mm | 760 |
| Winding width, mm | 650 |
| Winding motor, hp | Servomotor 1 kW or 1 hp DC |
| Machine dimensions, cm | 500х200х450 |
Note: The abovementioned equipment specifications can be modified without notice depending on the application.
